Nawab Mohammad Khan  ( Department of Anatomy, Faculty of Medicine, King Abdulaziz University, Jeddah, Saudi Arabia. )
Mohammad Afzal Khan  ( Department of Anatomy, Faculty of Medicine, King Abdulaziz University, Jeddah, Saudi Arabia. )
Fazal Karim Aasi  ( Department of Anatomy, Faculty of Medicine, King Abdulaziz University, Jeddah, Saudi Arabia. )

One of the mechanisms suggested for the etiology of trigeminal neuralgia is compression and’ dis­tortion of the nerve in the pontine zone by the superior and anterior inferior cerebellar arteries or their branches. Conflicting reports have been presented by various workers on this issue. The present study was conducted on cadaveric specimens. The superior cerebellar artery was found to be in contact with the trigeminal nerve in 34.1% and within 1 - 2 mm in 19.5% of cases. Other features of the neuro-vascular relationship were also studied. It is concluded that due to its very close relationship the superior cerebellar artery could possibly cause compression and distortion of the trigeminal nerve (JPMA 35:140, 1985).

The mechanism producing trigeminal neuralgia lacks a satisfactory explanation. Dandy¹ in 1934 first suggested that arterial compression and distortion of the trigeminal nerve at its point of entry into the pons couId be a possible etiological factor in this condition. Sunderland² reported that superior cerebellar artery (SCA) or one of its branches frequently looped around and made contact with the root of the trigeminal nerve. Hardy and Rhotson³ have also studied this microsurgical relationship and have discussed the role of neurovascular contact. Jannetta⁴ has studied the problem in living subjects undergoing posterior fossa operations. Mehta et al.⁵ concluded their study by saying, “While the possible role of such neurovascular contact in the genesis of neuralgia is of interest, a causal relation cannot be established”.
Since the available reports in the literature are only scanty, we considered it of value to study this neurovascular relationship with two objects in mind: firstly, to see the normal pattern and secondly, to evaluate its possible role in the generation of trigeminal neuralgia.

The arterial relationship between 41 trigeminal nerves and SCA’s was examined in adult male and female cadevars. In each case the calvaria was removed and the brain stem transacted at the level of superior colliculi. The cerebral hemispheres were removed and the tentorium cerebeili was sectioned along the straight sinus and retracted laterally. Under x 10 magnification the arachnoid coverings of the basal cistern were opened and the relationship between SCA and trigeminal nerve was observed on each side.
The site and type of origin, the course, the branches and variations of the artery were recorded. The size of the artery at its origin, close to the trigeminal nerve and at its bifurcation was measured. The distances from origin to bifur cation and from trigeminal nerve were also recorded. Other vessels close to the trigeminal nerve in this region were also looked for.

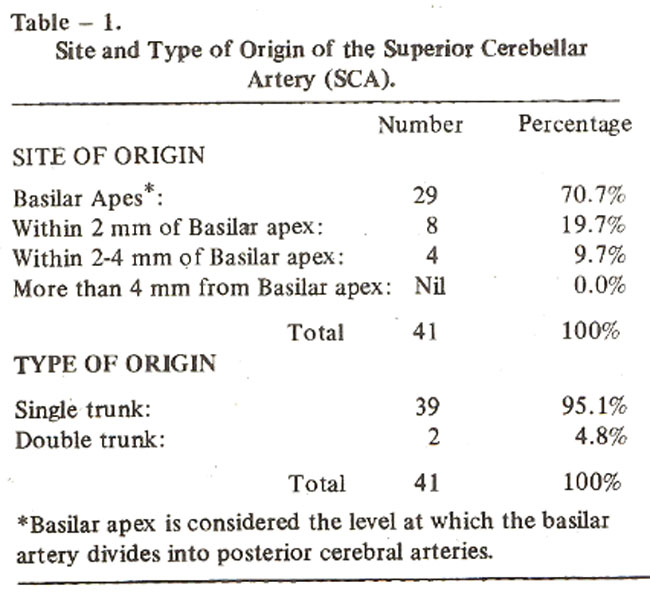

Our observations support the previously held view that SCA is the most consistent in its origin and location of all the posterior cranial fossa arteris^6,7. Thirty-nine (95.1%) SCA’s arose as single trunks and only two (4.8%) were found as duplicate vessels of the 41 SCA’s studied (Table 1). This duplication of vessels was only unilateral. Bilateral duplication was not seen. Most (70.7%) of the SCA’s arose from the basilar apex (Table 1).

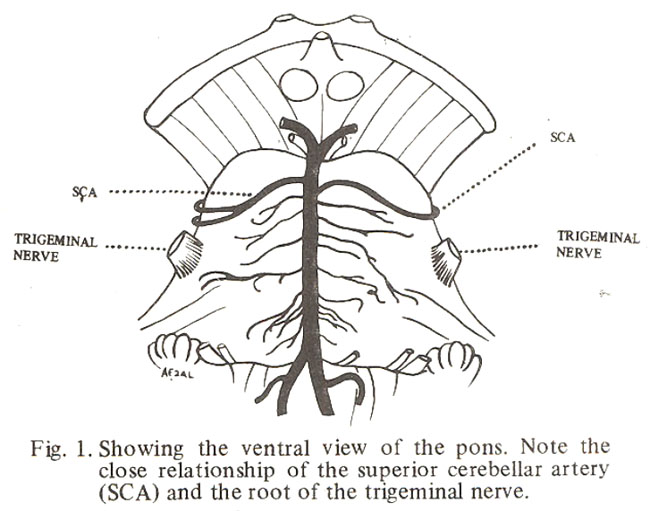

Caudal looping of the SCA was observed in almost all the cases (Fig.!).

This looping was more pronounced in the part of SCA proximal to the trigeminal nerve. Distance from the trigeminal nerve was reduced where this looping was more pronounced.

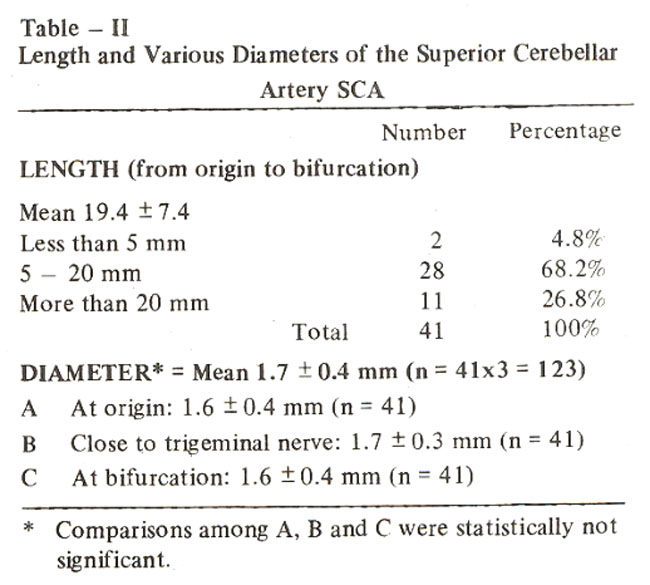

The mean length of SCA from its origin to bifurcation was 19.4 ± 7.4 mm and the total mean diameter was 1.7 ± 0.4 mm (Table II).

The comparisons between its diameters at origin, close to the trigeminal nerve and at bifurcation were statistically not significant.

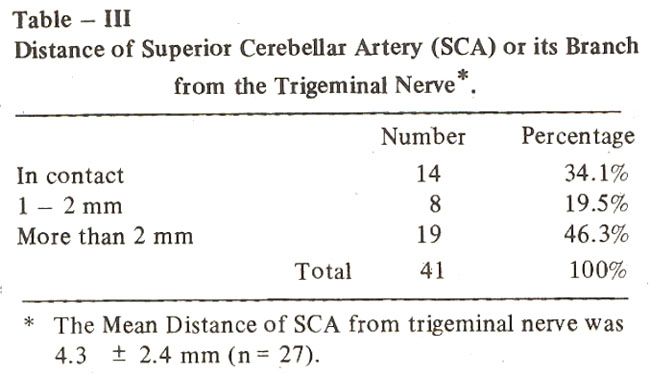

In fourteen cases (34.1%) the SCA or its caudal part (in both duplicate cases) was in contact with the trigeminal nerve. The mean distance from the nerve in the remaining 27 cases was 4.3 ± 2.4 (Table III).

We did not find any sign of indentation or compression of the trigeminal nerve by the SCA in those cases where it was in contact with the nerve. Looping of the SCA, however, was invariably present in all these cases.
Other features of the results are summarised in tables I, II, and III. The anterior inferior cerebellar artery (AICA) was lying far away from the trigeminal nerve and we did not find any other vessel close to the nerve in this region in our study.

The origin, course and bifurcation of the SCA in our study is fairly consistent with that of the previous workers^2,3,7. Caudal looping of the artery has also been observed by Hardy and Rhotson³, Dandy¹ and Sunderland². Duplicate origin of the SCA was 4.8% in the present study which is roughly in agreement with the findings of Mehta et a15 and Hardy and Rhotson³.
The diameter of the SCA from its origin to bifurcation was fairly uniform (Table 1), a finding consistent with that of Mehta et a1⁵. The length of the artery from its origin to bifurcation (Mean 19.4 ± 7.4) is in agreement with Hardy and Rhotson³.
Sunderland² stated that SCA “frequently” loops downward to the upper surface of the trigeminal nerve and may indent or even perforate it. Jannetta⁴ found no signs of compression or distortion of the nerve in his series of study. In our study we did find looping of the artery invariably but could not find any compression or distortion of the nerve (Fig. 2).

The AICA never reached close enough to affect the nerve.
We found that in 34.1% of cases the artery was in actual contact with the trigeminal nerve and in another 19.5% it reached very close to it (within 1-2 mm). This raises the percentage to 53.7. Hardy and Rhotson³  have already reported this neurovascular relationship in 52% of cases, where as, Mehta et al. have reported actual contact in only 8.3%; our observation seems to confirm that of the previous author.
Studies of cadaver specimens are of limited value in discussing the etiology of pain producing conditions such as trigeminal neuralgia but the frequency with which this neurovascular contact occurs makes it possible that vascular compression and distortion of the nerve may indeed, be important in the etiology of this painful condition. In our study the main trunk of the SCA, rather than one of its branches, came in contact with the nerve. In life, pulsations in an artery of this size may produce distortion and compression of the nerve.
Whether or not SCA can be implicated in the etiology of trigeminal neuralgia will only be settled conclusively when, as suggested by Jannetta⁴, postmortem studies in subjects with and without trigeminal neuralgia are carried out.

1. Dandy, W.E. Concerning the cause of trigeminal neuralgia. Am. J. Surg., 1934; 24: 447.
2. Sunderland, S. Neurovascular relations and anamolies at the base of the brain. J. Neurol. Neurosurg. Psychiat, 1948; 11: 243.
3. Hardy, D.G. and Rhotson, A.L. Microsurgical relationship of the superior cerebellar artery and the trigeminal nerve. J. Neurosurg., 1978; 49: 669.
4. Jannetta, P.J. Arterial compression of the trigeminal nerve at the pons in patients with trigeminal neuralgia. J. Neurosurg., 1967; 26: 159.
5. Mehta, L., Fatani, J. and Rao, G. Superior cerebellar artery in the pontine zone. Saudi Med. H., 1981;2: 213.
6. Mani, R.L., Newton, T.H. and Glickman, M.G. The superior cerebellar artery: an anatomic roentgenographic correlation. Radiology,1968; 91: 1102.
7. Stopford, J.S.B. The arteries of the pons and medulla oblongata. J. Anat. Physiol., 1916; 50: 131.
