Muhammad Luqman ( Present Address: Pathology Department, Army Medical College, Rawalpindi. )
Maria H. Sjogren ( Army Medical College, Rawalpindi and Walter Reed Army institute of Research, Washington, D.C. )
Barry D. Cohen ( Army Medical College, Rawalpindi and Walter Reed Army institute of Research, Washington, D.C. )
Iftikhar A. Malik ( Army Medical College, Rawalpindi and Walter Reed Army institute of Research, Washington, D.C. )
April 1988, Volume 38, Issue 4
Original Article
Abstract
The serum sample and serial stool specimens of an adult patient suffering from Hepatitis A were tested for serological markers of acute hepatitis by enzyme linked immunosorbent assay (ELISA) technique and presence of hepatitis A virus (HAV) by various methods namely, solid phase radioimmunoassay (SPRIA) and molecular hybridisation utilizating c DNA recombinant technique. In addition stools from 2 owl monkeys experimentally infected with HAV were also studied by similar methods. The stool samples from the patient revealed an irregular shedding of HAV upto 3 weeks after the onset of jaundice as detected by SPRIA and molecular hybridisation techniques. In the light of present work and other reported studies, the stools of a patient of hepatitis A should be considered infectious to other persons upto 3—4 weeks after the onset tionary measures adopted (JPMA 38: 96, 1988).
INTRODUCTION
Hepatitis A infection is global in distribution with high prevalence in the developing countries1,2,3.The causative agent of hepatitis A was identified less than 15 years ago4. More recently the successful propagation of hepatitis A virus (HAV) in cell culture5 and molecular cloning of HAV genome6 have led to better understanding of HAV -— host cell interaction and the nature of hepatitis A virus. The pathogenesis of hepatitis A remains largely unknown but some understanding has been gained from a limited number of experimental infections involving humans7,8,9 and several susceptible non-human primate species i.e., chirnpanzees, marmosets and owl monkeys10,11,12. A brief period of viraemia has been shown to precede the onset of hepatitis and faecal shedding of overt symptoms of hepatitis and appropriate precau is. found to be maximum during the late incubalion period, just prior to or shortly after the onset of liver disease13,14,15. Some of the later reports have shown that HAY may be detected for a variable period of upto 3 weeks in stools even after the appearance of jaundice16,17,18. This study was conducted to assess the faecal shedding of hepatitis A virus in stools after the appearance of overt symptoms of jaundice in a patient suffering from hepatitis A.
MATERIALS AND METHODS
Materials:
Ten stool samples were collected from a patient suffering from hepatitis A. The stools were collected daily from 26 February to 5 March 1986 and kept at —20°C until studied. The patient was first seen in a hospital on February 13, 1986 He appeared jaundiced and had abnormal liver function tests with raised transaminases. The serology for acute hepatitis A was positive (1gM anti-HAY) while the serological markers of acute hepatitis B were negative. Twelve stools samples of 2 owl monkeys experimentally infected with hepatitis A were also studied similarly. These animals had previously been infected with HAY strain HM-175. The faecal matter included in this study represents the stool specimens collected from these two owl monkeys upto 3 weeks after inoculation of virus.
Methods:
Ten percent stools dilutions were prepared in normal saline and clarified at 10,000 rmp. On the 10 K clarified stools following tests were carried out:-
1. Solid Phase Radioimmunoassay(SPRIA):
SPRIA was performed on all stool samples to assess the presence of hepatitis A antigen. The test was done as previously reported by Purcell et al.1 Briefly, flexible microtitre plastic plates with wells after washing were precoa ted with anti-HAV positive serum. After another washing, 25 ul of diluted stool samples were loaded in the wells and incubated overnight at 4°C. Next morning, after washing of plates with PBS-Tween 80: 25 ul of l1 25 labelled anti-HAV was added in each well. The wells were cut and counted individually in a gamma counter (Rack Gamma Counter, LKB Instruments). Any reading > 2.1 of P/N value was considered positive for the presence of HAy antigen in the stool samples.
2. Cesium Chloride (CsCI) Purification:
Six of the 10 stools were processed individually to assess the hepatitis A virus density in cesium chloride density gradient preparations. The procedure was done as previously reported by Coulepis et al20 Briefly 11 ml gradients were prepared by addition of 1.0 ml of 10% stools to 10 ml phosphate buffered saline (PBS) containing 4.4 g of CsCl to give a prespindensity of 1309 g/cm3. The gradients were loaded in a SW 41 rotor and centrifuged for 48 hours at 30,000 rmp in a L55 OB ultra-centrifuge (Beckman Instruments, California). After centrifugation, 0.5 ml fractions were collected from bottom of the tubes. Cesium chloride density was measured in every other fraction and hepatitis A antigenecity was determined in these fractions by SPRIA as described above.
3. Molecular Hybridisation:
The cDNA-HAV molecular disation was carried out by direct extraction of from stool samples and with monoclonal antibody, according to the combined immunoaffinity cDNARNA hybridisation method as described by Jansen et al 21 Briefly, alter either direct extraction of HAY-RNA from 10% suspension of 10 K clarified stools or with monoclonal antibody method, the samples were blotted on nitrocellulose filter. After removing the filter from slot blotter, it was dried under a heat lamp for 15 minutes and baked at 80°C for 2 hours. The baked nitrocellulose filter was first sealed in a plastic bag with prehybridisation solution and then hybridisation solution containing p32 labelied cDNA-HAY probe, for 20 hours at 42°C on a shaking water bath. The washed filter was blotted dry and exposed to XAR-5 film in a cassette at 70°C for 20 hours, after which autoradiography was performed.
RESULTS AND OBSERVATIONS
Serological Result:
The serum samples from the patient at the time of admission to the hospital were positive for IgM anti-HAY and negative for hepatitis B surface antigen (HBsAg) and antibody to hepatitis B core antigen (1gM anti-HBc) by ELISA technique.
Detection of HAV by Solid Phase Radioimmunoassay:

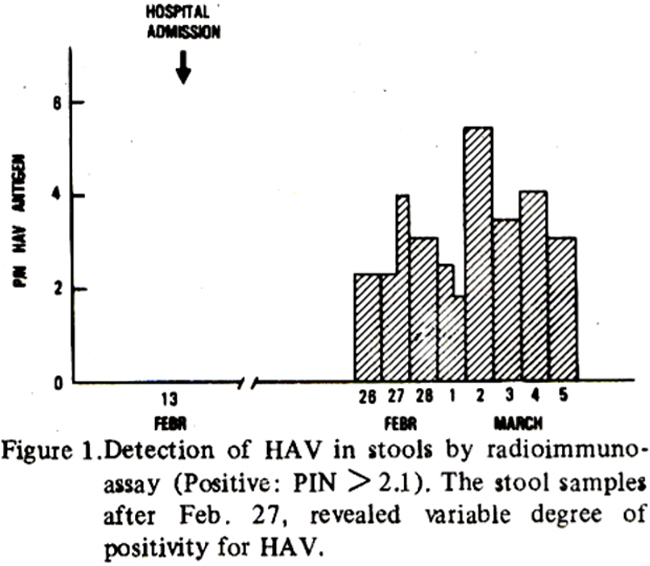

The figure 1 depicts the HAY antigen P/N values in 10 stool samples of the patients studied in this work. It was interesting to observe a wide variation of P/N levels in the sequential stool specimens. Indeed, on 27 February and 1 March, 86 when instead of one sample two stool specimens were collected from the patient on the same day a variability of P/N values was observed in these stool specimens collected on the same day.
CsCI Gradient Purification:

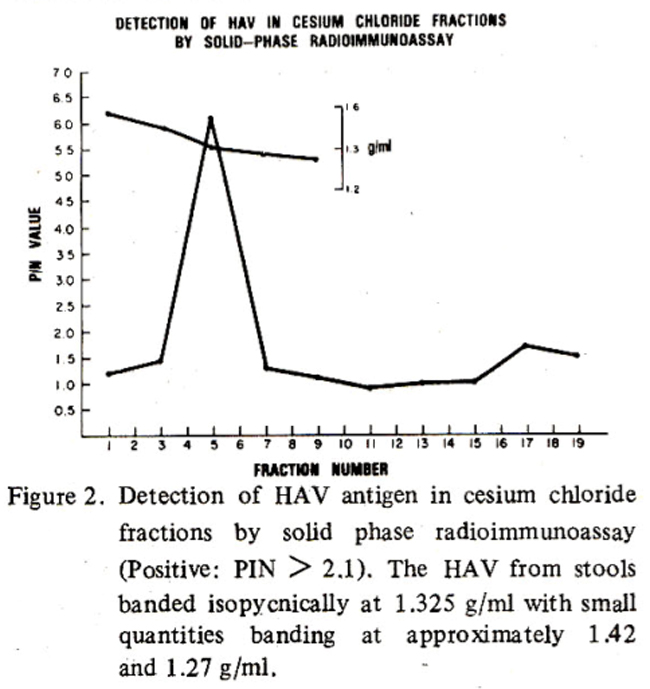

The figure-2 shows the cesium chloride density (1.31 g/ml) in the fraction of stools which were positive for HAY antigen as determined by SPRIA. Although the human stool specimen collected on 2 March, 86 has been selected for graphic representation, nevertheless other 5 human stools studied also showed similar results.
Molecular Hybridisation:
The figure-3 depicts the molecular hybridisation results by direct extraction method. The immunoaffinity method also showed similar results (data not shown). In the left column, stools of 27 February 86 (second sample) and I March 86 are considered 1+ positive. The stool sample from 3 March 86 shows a strong (3+) positivity similar to the positive control. The other human stool samples are considered negative. The owl monkeys stools (AA & BB) also revealed a variability of positive and negative hybridisation signals in stool samples collected 3 weeks after inoculation with HAV.
DISCUSSION
During early infection in chimpanzees, the hepatitis A antigen can be identified by immunofluorescence in the cytoplasm of upto 5 to 10% of hepatocytes22. It is currently believed that HAV found in faeces is derived from hepatocytes and reaches the intestine via the bile ducts23. A very small amount of HAV has also been detected in human saliva24. In a patient infected with hepatitis A virus, a transient period of viraemia occurs preceding the appearance of jaundice which is followed by appearance of viral antigen in hepatocytes and excretion in bile and stool specimen25. The shedding of viral particles of HAY in stools has been reported by different workers. Some of these studies revealed that the shedding of hepatitis A antigen was maximum during the late incubation period and terminated after onset of jaundice13,14,15. Several other workers have shown that HAy may still be detectable in stools upto 10 days after the appearance of symptoms of jaundice25. Our observation of detection of viral antigen of HAY in stool specimen of a patient suffering from hepatitis A tends to agree with some recent studies which have shown the presence of viral antigen of HAY in stools upto 3 weeks after the appearance of jaundice and elevation of aminotransferase levels in serum samples17. However, in a large proportion of patients with clinically overt disease, HAY is undetectable in stool specimen collected early in the disease17,18. This study also highlights one more feature that the shedding of HAY during illness is not a consistent feature as a wide variation was observed to occur in HAY shedding in sequential stool specimen. These observations imply that contrary to earlier reports, the stool specimen of a patient with hepatitis A should be considered infectious for at least 3 weeks after the onset of jaundice and all precautions must be taken to prevent the spread of this disease to other healthy individuals.
REFERENCES
1. Wong. D.C., Purcell, R.H. and Rosen, L. Prevalence of antibody to hepatitis A and hepatitis B viruses in selected populations of the South Pacific. Am. J. Epidermol., 1979; 110:227.
2. Malik, I.A., Lugman, M., Ahmed, A., Muzaffar, M., Anwar, C.M., Akhtar, M.A. and Quraishi, M.S. A clinicopathological study of viral hepatitis. Pakistan J. Med. Res. 1987; 26:4.
3. Szmuness, W., Dienstage, J.L., Purcell, R.H., Stevens, C.E., Wong, D.C., lkram, H., Barshany, S., Beashey, R.P., Desmyter, J. and Gaon, J.A. The prevalence of antibody to hepatitis A antigen in various parts of the world; a pilotstudy. Am. J. Epidemiol., 1977; 106:392.
4. Feinstone, SM., Kapikian, A.Z. and Purcell, R.H. Hepatitis A; detection by immune electron microscopy of a viruslike antigen associated with acute illness. Science, 1973;182:1026.
5. Provost,P.J. and Hilleman, M.R. Propagation of human hepatitis A virus in cell culture in vitro. Proc. Soc. Exp. Biol. Med., 1979; 160:213.
6. Ticehurst, J.R., Racaniello, V.R., Baroudy, B.M., Baltimore, 0., Purcell, R.H. and Feinstone, S.M. Molecular cloning and characterisation of hepatitis A virus cDNA. Proc. Natl. Acad. Sci. USA., 1983;80:5 885.
7. Neefe, J.R., Gellis, S.S. and Stokes, 3. Jr. Homologous serum hepatitis and infectious (epidemic) hepatitis. Am. 3. Med., 1946; 1:3.
8. JCrugman, S., Giles, J.P. and Hammond, 3. Infectious hepatitis; evidence for two distinctive clinical, epidemiological, and immunological types on infection. JAMA., 1967; 200:365.
9. Boggs, J.D., Melnick, J.L., Conrad, M.E. and Felsher, BY. Viral hepatitis. Clinical and tissue culture studies. JAMA., 1970; 214:1041.
10. Deinhardt, F., Peterson, 0., Cross, G., Wolfe, L. and Holmes, A.W. Hepatitis in Marmosets. Am. 3. Med. Sci., 1975 ; 270 :73.
11. Deinstage, J.L., Feinstone, S.M., Purcell, R.H., Hoofnagle, J.H., Barker, L.F., London, W.T., Popper, H., Peterson, i.M. and Kapikian. A. Z. Experimental infection of chimpanzees with hepatitis A virus. 3. Infect. Dis., 1975; 132:532.
12. LeDuc, J.W., Lemon, S.M., Keenan, C.M., Graham, R.R., Marchwicki, R.L.L.and Binn, L.N. Experimental infection of the New World owl monkey (Aortus trivirgatus) with hepatitis A virus. Infect. Immun., 1983 ;40 :766.
13. Dienstag, J.L., Feinstone, S.M., Kapikian, A.Z., Purcell, R.H., Boggs, J.D., and Conrad, M.E. Faecal shedding of hepatitis-A antigen. Lancet, 1975; 1:765.
14. Flehmig, B., Frank, H. and Frosner, G.G. Hepatitis A virus particles in stool of patients from a natural outbreak in Germany. Med. Microbiol. Immunol., 1977; 163:209.
15. Rakela, 3. and Mosley, J.W. Fecal excretion of hepatitis A virus in human. J. Infect . Dis., 1977; 135 :933.
16. Frosnar, G.C., Deinhardt, F., Roggendorf, M., Schcid, R., Bayerl, B. and Zachoval, R. Laboratory diagnosis of hepatitis A infection, in virus and the liner. Edited by Bianchi, L., Sickinger, K., Gerok, W. England, MTP Press 1980, p. 17.
17. Coulepis, A.G., Locarnini, S.A., Lehmann, N.J. and Gust, 1.D. Detection of hepatitis A virus in the feces of patients with naturally acquired infections. 3. Infect. Dis., 1980;141:151.
18. Carl, M., Kantor, RJ., Webster, H.M., Fields, H.A. and Maynard, J.E. Excretion of hepatitis A virus in the stools of hospitalised hepatitis patients. 3. Med. Virol., 1982; 9:125.
19. Purcell, R., Wong, D., Moritsugu, Y., Dienstag, J.L., Routenbur, J.A. and Boggs, 3.0. A microtitre solid-phase radioimmunoassay for hepatitis A antigen and antibody. 3. Immunol., 1976;116:349.
20. Coulepis, A.G., Locarnini, S. A., Westaway, E.G., Tannock, G.A. and Gust, I.D. Biophysical and biochemical characterisation of hepatitis V virus. Intervirology, 1982; 18:107.
21. Jansen, R.W., Newbold, J.E. and Lamon, S.M. Combined immunoaffinity cDNA-RNA hybridisation assay for detection of hepatitis A virus in clinical specimen. J. Clin. Microbiol., 1985; 22:984.
22. Mathiesen, L.R., Feinstone, S.M., Purcell, R.H. and Wagner, J.A. Detection of hepatitis A antigen by immunofluorescence. Infect. Immun., 1977; 18:524.
23. Mathiesen, L.R., Moller, A.M., Purcell, R.H. London, W.T. and Feinstone, S.M. Hepatitis A virus in the liver and intestine of marmosets after oral inoculation. Infect. Immun., 1980;2 8:45.
24. Purcell, R.H., Feinstone, S.M. , Ticehurst, J.R., Daemer, R.J. and Baroudy, B.M. Hepatitis A virus, in viral hepatitis and liver disease, Edited by Vyas, G.N., Dienstage, J.L., Hoofnagle, J.H. Grune and Stratton Orlando: 1984,p.9.
25. Schulman, A.N., Dienstag, J.L., Jackson, D.R. Hepatitis A antigen particles in liver, bile, and stool of chimpanzees. J. Infect. Dis., 1976;134: 80.
26. Hall, W.T. Identification, isolation and characterisation of the infectious hepatitis ( hepatitis A) agents, in final report, 12-1-74-6/30/77. October 1977. Washington, Environmental Protection Agency, 1977, 600/1-77.049.
