Saleem Ahmed  ( Departments of Haematology, Armed Forces Institute of Pathology, Rawalpindi. )
Masood Anwar  ( Department of Haematology, Armed Forces Institute of Pathology, Rawalpindi. )
Saleem Ahmed Siddiqui  ( Departments of Histopathology, Armed Forces Institute of Pathology, Rawalpindi. )
Muhammad Saleem  ( Department Of Haematology, Armed Forces Institute Of Pathology, Rawalpindi. )
Parveen Ara Ahmad  ( Departments of Haematology, Armed Forces Institute of Pathology, Rawalpindi. )
Sajid Mushtaq  ( Department of Oncology, Combined Military Hospital, Rawalpindi. )

Granulocytic sarcoma is an unusual variant of myeloid malignancy most commonly encountered in the course of chronic or acute myeloid leukaemia. Of 60 patients of chronic myeloid leukaemia studied over 21 months, we encountered 6(10%) cases of granulocytic sarcoma. Four of these had granulocytic sarcoma on their first presentation. All those who were receiving hydràxyurea did not fare well but one who was put on DAT (daunorubacin, cyftosine arabinocide, 6 thioguanine)regiinen went into remission with complete disappearance of lesions (JPMA 45:180, 1995).

Granulocytic sarcoma is an unusual variant of myeloid malignancy characterized by extramedullary tumor masses composed of immature myeloid cells¹. The tumor may occur as an isolated finding or may be associated with acute myeloid leukaemia, chronic myeloid leukaemia, agnogenic myeloid metaplasia hypereosinophilic syndrome and polycythaemia vera². Initially these tumors were called "Chloromas" be­cause of the green appearance of the freshly cut surface of the tumor. This green colour is due to abundance of enzyme my eloperoxidase in the Ieukacmic cells. Since not all myeloid cells are green, the term granulocytic sarcoma is now preferred. The most common sites of its origin are skin, lymph node and bones. Other sites include breast, gastrointestinal tract, ovaries, brain, testis, kidney, peritoneurn and spinal canal³. Granulocytic sarcoma may arise during the course of leukaemia or precede its development. It may be the first evidence of relapse in a patient with acute myeloid leukaemia on maintenance therapy. These tumors may also represent the initial manifestation of a blast crisis of chronic mycloid leukaemia⁴. The diagnosis of granulocytic sarcoma can be suspected on morphological grounds and confirmed by the presence of specific myeloid enzymes, .CD13 and CD33 cxpression and lack of T cell and B cell specific antigens⁵. We describe characteristics and the course of six patients who developed granulocytic sarcoma in association with chronic myeloid leukaemia.

Sixty cases of chronic myeloid lcukaemia were diag­nosed and followed for 21 months (1st July, 1992 to 31st March, 1994). The diagnosis of chronic myeloid leukaemia was based upon blood complete picture, leucocyte alkaline phosphatase activity, cytogenetics, bone marrow aspiration and biopsy where indicated.
The blood counts were performed on TechniconTM haematology analyzer, which was calibrated and quality controlled using high, normal and low commercial controls obtained from TechniconTh4. The differential count was done by counting 300 cells on push smears stained with Leishman stain. Leucocyte alkaline phosphatase staining and scoring was carried out by the method described by Catovsky⁶. Bone marrow aspirations and trephine biopsies were performed and processed by standard techniques⁷. Bone marrow aspiration sample was used for cytogenetic studies. The procedure used for direct culture was that described by Younis . The diagnosis ofgranulocytic sarcoma was made by fine needle aspiration of the growth or its biopsy and processed by standard tech­niques⁷.
Patients, after informed consent, were placed on induc­tion therapy with hydroxyurea 35 mg/kg body wt/per day orally⁹. Maintenance dose of hydrox-yurea was adjusted according to the haematological parameters determined at fornightly intervals. The patient who presented with CML in myeloid blast transformation was placed on DAT 3+7 (Daun­orubicin for 3 days and other two drugs for 7 days) chemetherapy¹⁰.

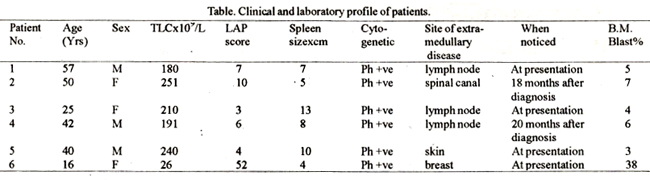

Of sixty patients of CML, a diagnosis of granulocytic sarcoma was made in 6(10%). Four patients had extramedul­lary disease on presentation, while two developed it during the course of the disease. The clinical and laboratory profile of each patient at presentation is show in the table.

All except one case who presented in blast crisis, had clinical and laboratory findings typical of chrome phase CML. One patient, a young girl of 16, presented with multiple lumps in both breasts. The biopsy of the lump suggested presence of myeloid blast cells. Although her peripheral blood and bone marrow aspirate showed excessive blasts but her LAP score was at the lower limit of the normal and Philadelphia chromosome was demonstrated in the bone marrow aspirate. Thus a diagnosis of CML in blast crisis was made. She responded very well to DAT 3+7. regimen arid is still in remission. The clinical response to hydroxyurea was less satisfac­tory. One patient showed progressive deterioration with laboratory features of accelerated disease after 3 months. He died of fulminant hepatic failure soon after. Another patient is also showing progression to accelerated phase of disease with constitutional symptoms and progressive viscemmegaly de­spite therapy for 8 months. One patient died postoperatively after his extra medullary leukaemic tumor was removed from the spinal canal, remaining two patients did not report for follow up and were later reported to be dead.

CML is known to be a biphasic ortriphasicdisease. The initial chronic phase usually lasts for three to four years. Then the disease enters accelerated phase and later transforms into blast crisis¹¹. However, sometime the patient presents when the disease is already in accelerated phase orbiast transforma­tion. Several features have been identified that are associated with disease transformation. Granulocytic sarcoma is one of the unusual manifestations of disease evolution and progres­sion. It may arise simultaneously witha typical blood and bone marrow pattern of acute leukaemia, during the course of blast crisis or antedate its development in the marmw by months¹². Although there are several reports of occurrence of granulo­cytic sarcoma in literature but the largest series reported by Terjanian et al³ have estimated its frequency at 7.9% of CML patients. No other significantly large series has been reported in the literature. In our series the incidence is lO%, which is higher than that reported by Terjanian et al Our 4 patients presented with granuk)cytic sarcoma at the time of diagnosis of CML, this was an unusual fmding and has notbeen reported previously in the literature^2,3. Most of the reported cases of granulocytic sarcoma have occurred during the course of CML. Conventional hydroxyurea dosage proved ineffective in controlling the lesions of granulocytic sarcoma. Patients of granulocytic sarcoma required somewhat higher doses of hydroxyurea than other patients of CML in chronic phase without extramedullary disease. More aggressive chemother­apy in these cases could be an alternate option. One case who presented with marrow blast crisis and granulocytic sarcoma responded well to DAT 3+7 induction therapy. She is in complete remission for over one year. To summarize, granulocytic sarcoma is an unusual manifestation of CML, which may be a presenting feature. Its detection characterizes poor risk patients and may call for more aggressive therapy.

1. Wiernik, P. H. and Serpick, A. A. Granulocytic sarcoma (Chloroma) Blood, 1970;35:361 -69.
2. Neiman, R. S., Barcos, M., Berard, C. et al. Granulocytic sarcoma. A clinicopathological study of 61 biopsied cases. Cancer, 1981 ;48: 1426-37.
3. Terjanian, T., K antarjian, H., Keating, M. et al. Clinical and prognostic features •of patients with PH chromosome positive CML and extramedullary disease. Cancer, 1987;59:297-301.
4. Jacknow, G., Fizzera, 0., Gajl-peczalska, K. et at. Extramedullary presentation of the blast crisis of chronic myelogenous leukaemia. Br. J. Haematol., 1985;61:225-36.
5. Muller, S., Sangster, 0., Grocker, J. et al. An immunohistochemical and clinicopathological study of granulocytic sarcoma(chloroma). Haematol. On­col., 1986,4:101-112.
6. Catovsky, D. Leucocyte cytochemical and immunological techniques. In: Dacie, J. V. and Lewis, S. M. eds. Practical haematology Edinburgh, Churchill Livingstone, 1991,pp. 125-155.
7. Steven, A. The haematoxy lins. In: Bancroft, J. D. and Steven, A. eds. Theory and practice ofhistological techniques. Edinburgh, Churchill Livingstone, 1990, pp. 107-118.
8. Younis, J. J. New chromosomal technique inthestudy ofhuman neoplasia. Hum. Pathol., 1981;12:540-49.
9. Ready. N., Freeman. N.J. and Carvalho, A. Treatment choices in chronic myelogenous leukaemia. Hosp. Pract., 1992,30:95-101.
10. Gale. R. P. and Foom, K. A. Therapy of acute myelogenous leukaemia. Blood Rev., 1992;6:15-20.
11. Mathew, H. and Carabasi, M. D. Chronic myeloid leukaemia. Cancer Invest., 1993;11:408-19.
12. Brunning, M. D. and Richard, D. Granulocytic sarcoma (chloroma). In: Rosai, T. ed. Ackerman’s Surgical Pathology. Washington, D. C, C. V. Mosby Company, 1989, pp. 1400-1402.
