Khalid Iqbal  ( Departments of Otorhinolaryngology and Head and Neck Surgery, Dow Medical College and Civil Hospital, Karachi. )
lqbal H. Udaipurwala  ( Departments of Otorhinolaryngology and Head and Neck Surgery, Dow Medical College and Civil Hospital, Karachi. )
Shamim A. Khan  ( Sindh Government Hospital Liaquatabad, Karachi )
AitzazA. Jan  ( Sardar Bahadur Khan Institute of Chest Diseases, Quetta. )
M. Jalisi  ( Departments of Otorhinolaryngology and Head and Neck Surgery, Dow Medical College and Civil Hospital, Karachi. )

Fifty-one patients with established pulmonary tuberculosis underwent clinical evaluation and endoscopic examination of the larynx to determine the manifestations of laryngeal involvement. There were 46 males and 5 females (mean age 38 years). Fever, cough and haemoptysis were the prime pulmonary complaints while hoarseness, weak voice and episodic dyspnoea were the main laryngeal symptoms. Sites of laryngeal lesions included true vocal cords, arytenoids and false vocal cords. Oedema, pallor, ulcers, vocal cord immobility and thickening were the main laryngeal lesions observed. Twenty-four (47%) cases showed morphological changes in the larynx. The presentation pattern was consistent with the classical description and strated (JPMA 46:274, 1996).

Laryngeal affections of the pulmonary tuberculosis is common. The incidence of pulmonary tuberculosis with concomitant tuberculous laryngitis has declined in the devel­oped countries due to better diagnostic facilities, early and effective chemothcrapcutic regimens. However, ifl underde veloped world significant laryngeal involvement^1,2 is seen. but primary laryngeal tuberculosis is still rare³. The purpose of this study was to determine the manifestations of laryngeal involvement in the patients admitted at Sardar Bahadur Khan Institute of’ Chest Diseases, Quetta. This institute is a 200 beded hospital and functions under the auspices of Pakistan Railways to serve as a tertiary referral centre for railway employees and their dependents on a countrywide basis.

The study involved 5 1 patients recently admitted at the S ardar Bahadur Khan Institute of Chest Diseases at the time of evaluation. All were suffering from pulmonary tuberculosis confirmed by abnormal chest x-rays, elevated ESR and predilection for laryngeal involvement was not demon- presence of acid fast bacilli in the sputum smear. These patients were endoscopically examined and assessed using olympus laryngobronchoscope fitted with olympus OTV-F2 videocamera system for recording the observations. Four percent xylocaine spray and nasal packs were used forthe local anaesthesia.

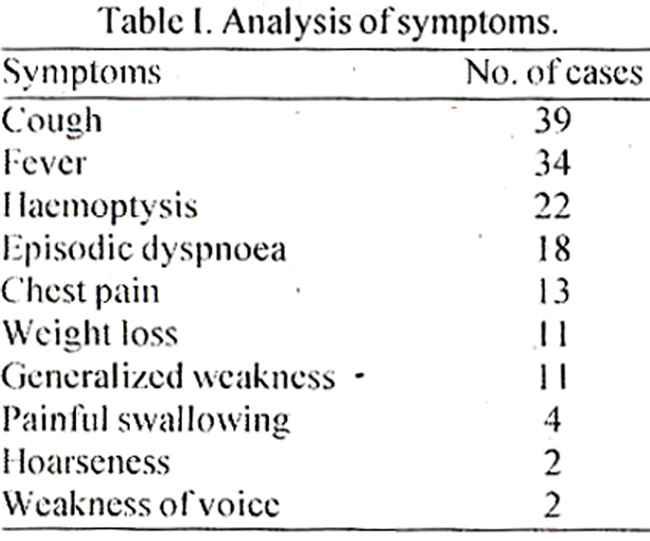

There were 46 males and 5 females with a mean age of 38 years. Majority of the patients were labourers. Only 15 cases were tobacco users. Fever, cough and haemoptysis were the prime pulmonary complaints (Table 1).

Hoarseness and weakness of voice was noted in 2 patients and episodic dyspnoea in 18 cases (Table I). Laryngeal examination showed involvement oftrue vocal cords in 13 cases arytenoids and false vocal cords in II each, epiglottis in 7, aryepiglottic fold in 3 and interarytenoid area in I case.

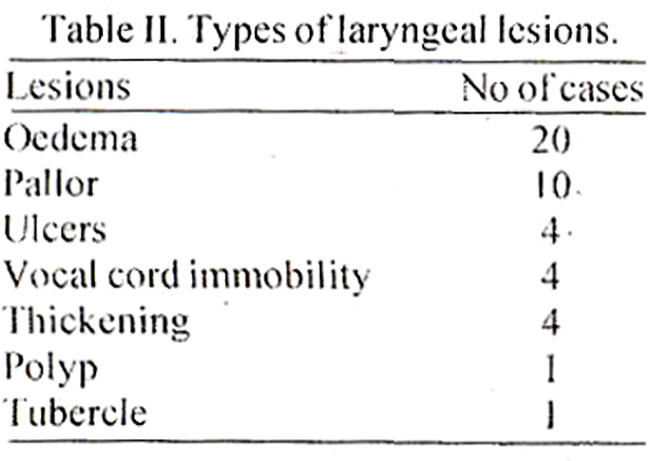

Table II shows oedema and pallor as the most common type of lesion followed by ulcers, vocal cord immobility and thickening. Twenty-four (47%) cases also showed ntorphological changes in the larynx.

Laryngeal tuberculosis is a frequent complication of pulmonary tuberculosis⁴. Discharge of large number of bacilli in the endobronchial secretions leads to direct invasion ofthe laryngeal mucosa which is already inflamed⁵. Other possi­ble modes of spread include haeniatogenous⁶ and via cervical lymphatics⁷. Larynx may also be involved alongwith other organs in miliary tuberculosis⁸. Tobacco abuse has a definite link with laryngeal tuberculosis⁵ but in the present stud, only 1 patients gave history of smoking. Hoarseness or weakness of voice is usually an early’ symptom of tuberculosis affecting the vocal cords. It may be produced by lesion on the cord or as a sign of immobility of the cords. Minimal cord lesion may’ remain asymptomatic. Weakness of voice may precede hoarseness⁹. Odynophagia is produced by ulceration, sub-mu cosal infiltration. perichondritis or neuritis¹⁰. Episodic dysp noea is often a manifestation of laryngeal oedema. Apical cavitory disease ofthe lung favours endobronchial dissemina­tion¹¹  and hence, promote laryngeal tuberculosis.
Vocal cords have been the site of involvement in other studies^12,13 Swollen srytenoids seen in this study, has also been reported by Beg and Marfani², however. involvement of interarytenoid area was uncommon in this study which is in contrast to other studies^1,14 where interarvtenoid lesions were common in females. Involvement of the posterior part of the larynx and the interarytenoid area is due to the tendency ofthe sputum to pool in this area in bed ridden patients¹⁵. Anterior portion ofthe vocal cords was spared which is in Shari) contrast to other series where this part of the vocal cords showed the commonest involvement^12,13,16. Anterior portion of the vocal cords is believed to be more vulnerable due to vocal abuse and effect of irritants¹².
Epiglottis was found involved in 7 cases in terms of oedema and thickening. Gross changes like "Turban epiglottis", or granulations were not seen in the current series. No destructive lesion of epiglottis was picked by, as reported by soda et al⁴ in a high percentage of patients in a South American study. Among the various types of lesionsm oedema was frequent in one study² and insignificant in another study¹².
Ulcerations were common in a study reported by Rupa and Bhanu12 from India but Beg and Marfani² could not locate any ulcerative lesion. The morphological appearances have and intresting pathological basis. The tubercle bacilli carried in the sputum get deposited in the area of laryngeal inlet with stratified squamous epithelium. Malnutrition and trauma caused by vocal abuse may predispose to infections¹⁷. The bacilli burrow beneath the epithelium leading to sub-epithelial microtubercies. Reaction of the host tissue excites exudation and ocdema formation. A proliferative and infiltrative process leads to the development of a typical tuberculous granuloma. Caseation, ulceration and secondary’ infection give rise to additional oedenia more marked in the region of arytenoid and epiglottis. Gross appearance tends to modify according to the location in the larynx where the mucosa is closely adherent to sub-mucosal structures like true vocal cords where ulceration is common. Where the mucosa is redundant like arytenoid, oedema and marked swelling supervenes. A combination otS oedema and ulceration can account for the multiple and multifocal lesions. The ulceration stimulates hypertrophy of the epithelium and the sub-epithelial fibrous tissue with metaplasia giving rise to the so called “thickened” areas. llypertrophic lesion was a common observation in one study¹². No definite reason for the pallor could he ascertained in this series. Hyperemia suggestive of laryngitis as docu­mented by others^11,12 was not seen here. The reasons of vocal cord immobility could be recurrent laryngeal nerve involve­ment. secondary to muscular infiltration or fixation of cricoarytenoid joint². luberculous infiltration of the pleura or mediastinal lymph nodes implicate recurrent laryngeal nerve of the left side usually. Frequent involvement of the left nerve is also explained on its long intrathoracic course compared to right side¹⁸. Fibrosis of the apical pleura also involves recurrent laryngeal nerve and such involvement is usually not responsive to the chemotherapy and therefore, may be considered irreversible¹⁹. The presence of vocal cord palsy signifies advanced stage of the disease²⁰. The prevalence of laryngeal changes associated with the pulmonary tuberculosis is around l.5%²¹. En the developing countries pulmonary tuberculosis still ranks among the major killer. The frequency of laryngeal tuberculosis in an African study was 26.7%¹, while in a Pakistani series itwas 37%², The present figure of 47% laryngeal involvement with advanced pulmonary tuberculosis is quite high, despite effective bacte­ricidal agents against m icrobacteria. The presentation pattern of laryngeal tuberculosis has changed in the developed world^6,22 as it resembles laryngeal carcinoma. Identical observations were recorded in an Indian study¹² and in a case report published from Pakistan²³. Our finding do not confirm any changing pattern. The presentation is consistent with the classical description and results showed no predilection for any Laryngeal site. We recommend an assessment ofthe larynx in all the advanced cases ofpulmonary tuberculosis to indicate any changing pattern of laryngeal morphology.

1. Marmi, H. Laryngeal tuberculosis in Tanzania. J.Laiyngol. Otol., 1983;97:565­-570.
2. Beg. MILA. and Marfani, S. Thelarynx in pulmonary tuberculosis. J.Laryngol. Otol.. 1985;99:201-203.
3. Jan, A. Primary laryngeal tuberculosis. Latyngol. Otol.. 1986;100:605-606.
4. Soda. A., Rubio, H.. Salazar, M. et al. Tuberculosis ofthe larynx; clinical aspects in 19 patients. Laryngoscope, 1989;99: 1147-1150.
5. Levenson, M.J., Ingerman, M.. Grimes. C. et al. Laryngeal tuberculosis; review of twenty cases. 1 aryngoscope, 1984 ;94:1094-1097.
6. Hunter, AM., Millar, 3W.. Wightman, A.J.A. et al. The changing pattern of laryngeal tuberculosis. Laryngol. Otol.. 1981;95:393- 398.
7. Ellis, M. The throat. In: Diseases of the nose, throat and ear. Ballantyne, 3., Groves, 3. (eds.), Philadelphia, J.B. Lipponcott, 1971, pp. 333-341.
8. Bachman, AL., Zizmor. J. and Noyek, A.M. Tuberculosis of the larynx. Seminars in roentgenology. vol. XIV, no.4 (Oct.), 325-327.
9. Travis, LW., Hybels, R.L. and Newman, M.H. Tuberculosis of the larynx. Latyngoscope, 1976;86:549-558.
10. St-Clair, T. Tuberculosis of the larynx. In: Diseases of nose and throat, Negus. V.E. (ed.) London, Cassel and Co. Ltd., 1955, p. 878.
11. Rhowedder, J.J., Upper respiratory tract tuberculosis: Sixteen cases in a general hospital. Ann. Intern. Mcd., 1974;80:708-713.
12. Rupa, V. and Bhanu, T.S. Laryngeal tuberculosis in the eighties, an Indian experience. J. Laryngol. Otol., 1989; 103:864-868.
13. Thaller, SR., Gross. JR., Pilch. B .Z. et al. Laryngeal tuberculosis as manifested in the decades 1963-1983. Laryngoscope. 1987;97 :848-850.
14. Manni, J.J. Prevalence of tuberculous laryngitis in pulmonary tuberculosis in Tanzania. Trop. Geogr.Med., 1982;34: 159-162.
15. Smaliman, L.A., Clark, DR., Raine, C.H.et al. The presentation of laryngeal tuberculosis. Clin. Otolaryngol., 1987;12:221-225.
16. Bailey, CM. and Windle-Taylor, P.C. Tuberculous laryngotis in a series of 37 patients. Laryngoscope, 1981 ;91 :93-100.
17. Espinoza, C.G., Montano, P. and Saba. SR. Laryngeal tuberculosis. Laryngo­scope, 1981;91:110-113.
18. Mc-Minn, R.M.H. Last’s anatomy; regional and applied. 8th edition. Mc-Minn. R.M.H. (ed.) Singapore, ELBS with Churchill Livingstonc. 1990, p. 647.
19. Vyravanathan, S. Hoarseness in tuberculosis. J. Laryngol. Otology, 1987;97:523-525.
20. Bastian, R.W. Chronic granulomatous disease ofthe larynx. In: Diseases ofnose, throat, ear, head and neck, 14th edition, Ballenger, .J.J. (ed.) Philadelphia. Lea and Febiger, 1991,p. 633.
21. Brodovsky, D.M. Laryngeal tuberculosis in an age of chemotherapy. Can. J. Otolaryngol., 1975;4:168-176.
22. Bull, T.R. Tuberculosis of the larynx.Br. Med.J., 1966;11:991-92.
23. Khan, I. Granulorna of the epiglottis. J. Laryngol. Otol., 1983:97:969-971.
